How to swap out brake pads on the B8.5 RS5

Tools I used:

  • 17mm plastic covered wheel socket
  • 1/2 inch drive flex handle bar
  • 1/2 inch drive torque wrench (set to 90 ft lbs)
  • Electric drill with 1/2 inch drive (because lazy/faster)
  • 15mm wrench
  • 13mm wrench
  • rubber mallet
  • regular mallet
  • punch (to tap out the pins)
  • Brake cleaner and brass brush (I used a spare one that I got for gun cleaning lol)
  • Permatex Nickel anti-seize (copper + aluminum + water = galvanic corrosion) High temperature stuff
  • Permatex Ceramic high temp brake grease (purple in color)
  • Brake piston tool (I need to get a ‘better’ one)
  • Wheel Lug guide tool
  • Jack + hockey puck
  • laptop and vagcom to retract EPB (YOU WILL NEED TO DO THIS)
  • (soldering iron because rear brake sensor)
  • New brake pads - I’m a big fan of Carbotech. Their 1521/Bobcat street compounds are really good as are their track compounds (I use RP2 in the front and XP10 in the rear). Mike Jr at Carbotech is really great to work with too. The pads have light colored dust that doesn’t stick to wheels. Go Deep! lol

First of, to save any other potential RS5 owner looking to do this themselves (lol, um, yeah), the plastic lug cap tweezer/remover is located below (bottom left - on the curve of the lug bolt bar included with the car):

https://lh6.googleusercontent.com/-r0I_UUtksLY/UxP0gkxGZPI/AAAAAAAAEJQ/HH5wCBVwUX8/w719-h479-no/IMG_1997.JPG

That’ll save you guys all of 3 minutes trying to look for it haha.

Start of with flex bar to loosen lug bolts:

https://lh3.googleusercontent.com/-rsqp6PUuw0s/UxP0gurz8-I/AAAAAAAAEJI/BXdcV9o5aF4/w719-h479-no/IMG_1998.JPG

Jack up car:

https://lh6.googleusercontent.com/-af5Aphsol7c/UxP0huh6ewI/AAAAAAAAEJg/4doZqpHJfqA/w719-h479-no/IMG_1999.JPG

Remove top most lug bolt and replace with Wheel lug guide. Remove all other lug bolts and set aside.

The idea is to tap out the two pins that’s holding the two retaining clips:

https://lh3.googleusercontent.com/-ebC-LjwAyWk/UxP0kYtguwI/AAAAAAAAEKQ/YZt0cLX8WeI/w319-h479-no/IMG_2006.JPG

Grab the metal punch and your mallet, and let’s tap those pins out!

https://lh4.googleusercontent.com/-4AEDvpwgqXg/UxP0lg2cEcI/AAAAAAAAEKk/KrlJRpNJTZY/w719-h479-no/IMG_2011.JPG

After you get it just past the state above, you can actually just push the pin through with the punch. What I also do is press down on the spring clips (that holds down the brake pads) with my finger so one side doesn’t ‘pop out’. If you’re worried about the punch moving, use your fingers to guide it (like in the pic). Hold the punch flush against the pin, and tap with a mallet. You won’t have to hit hard if you have a heavy mallet. Just tap… :slight_smile:

Once the pin is out most of the way, you can just grab the other side and pull it out (again, holding the spring clip down):

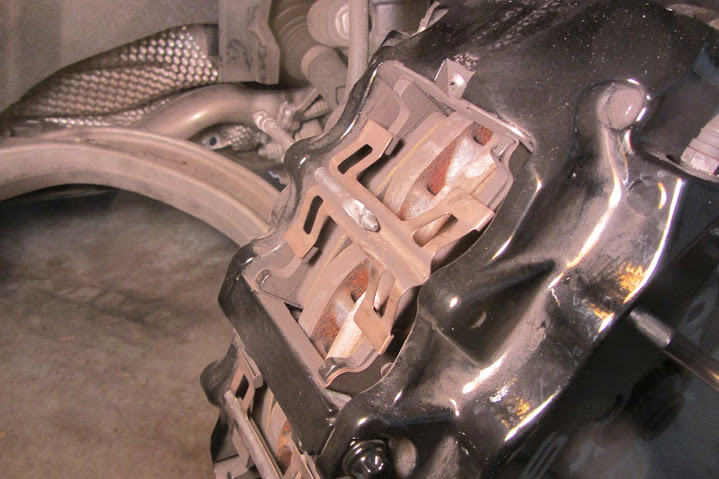

https://lh3.googleusercontent.com/-dLj5IpkYLrY/UxP0mYhwltI/AAAAAAAAEKw/WhspfmXnE9Y/w719-h479-no/IMG_2012.JPG

It’s all out:

https://lh3.googleusercontent.com/-7m6KJwzaze4/UxP0mrIj6UI/AAAAAAAAEK0/vu0HmZDb6qg/w719-h479-no/IMG_2013.JPG

To get the pads out, I actually grab the outer pads with my fingers and just pull towards me (though I have good grip strength). This should loosen it enough to slide out. For the inner side, well, I just hit it with my rubber mallet a few times to loosen it.

https://lh3.googleusercontent.com/-4Jznt7c-r2M/UxP0njW_oKI/AAAAAAAAELE/EUgGhBvY6b4/w319-h479-no/IMG_2014.JPG

Once you have the pad out, rotate it 90 degrees and stick it back in halfway. We’re going to use the pad as a lever to retract the caliper piston. Once it’s inserted halfway (give or take - I like to make sure the edge of the brake pad’s backing plate is in the middle of the brake pistons), push it in the direction of the rotor (using the rotor’s outer edge as a fulcrum).

https://lh6.googleusercontent.com/-QnDsSrRPYxM/UxP0n1oJtXI/AAAAAAAAELI/V7dqKkH0CLo/w719-h479-no/IMG_2017.JPG

After that, slide new/replacement brake pad in, and move on to the next pad (do it one by one - if you compress a pair of pistons and the other side doesn’t have a pad in, those pistons will pop out - we’re trying to get all of them in!).

Retracted pistons:

https://lh4.googleusercontent.com/-osgnn5m9egA/UxP0ozHvl5I/AAAAAAAAELg/aKzwJwM6wds/w319-h479-no/IMG_2020.JPG

What I do on this step is ‘optional’. I like cleaning things. So bust out the brake cleaner, get a brass bristle brush (I used the one I had from my gun cleaning kit), and clean the spring clip and pin.

https://lh4.googleusercontent.com/-AwOwkXFLL80/UxP0plQgJvI/AAAAAAAAELk/h2aIN54IdH4/w719-h479-no/IMG_2022.JPG

I apply some Permatex brake grease (to combat squeal):

https://lh6.googleusercontent.com/-6UMEg-hK6Lw/UxP0qNcYvqI/AAAAAAAAEL0/r5C5D_UpDbQ/w719-h479-no/IMG_2023.JPG

I use the high temperature stuff that won’t fizzle under ‘enthusiast’ use (though it might still turn to dust in track situations).

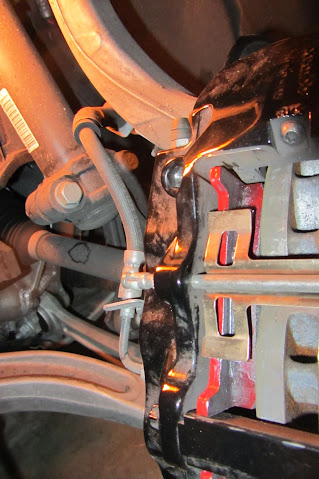

Insert the retaining pin as far as you can, and finish off with a rubber mallet:

https://lh5.googleusercontent.com/-ImX2DjWEPb0/UxP0qj9R9UI/AAAAAAAAEL4/_MFfgLHdHSo/w319-h479-no/IMG_2024.JPG

Note: The front left side caliper has a brake wear sensor:

https://lh4.googleusercontent.com/-bIlokjtq_wk/UxP0utRQW1I/AAAAAAAAEM8/MF22XEBazUM/w319-h479-no/IMG_2035.JPG

You can see the wire coming out of the caliper from the top inner pad.

This requires an additional step:

https://lh6.googleusercontent.com/-dgzuJv266ec/UxP0xCi45rI/AAAAAAAAENw/trtDmxC4sQE/w719-h479-no/IMG_2045.JPG

Basically, pop the rubber cap off of the brake bleed nipple to release the pad sensor (I recap it half way to prevent stuff from entering the bleed nipple). The sensor then connects to the metal piece in the above picture. On the other side, grab the end and squeeze the tab to pull out the female connector. The plastic extrusion (on the male side) needs to be popped out slightly out of the hole from metal holder, and rotated 90 degrees clockwise. After which you can then slide it down and out.

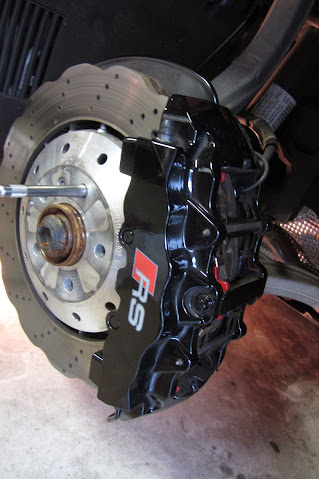

After that, insert the new pad with a sensor, and repeat the process backwards:

https://lh6.googleusercontent.com/-H8i6jTTB_us/UxP0zglqFUI/AAAAAAAAEOc/JiaMSMrxGD4/w319-h479-no/IMG_2054.JPG

Remember to tuck the sensor wire using the bleeder nipple cover (and reapply it all the way).

Rear brakes

First thing’s first. VAGCOM. In 12.12, they’ve updated the look of how to do this. The old way of doing this was like this.

Basically, turn on your car (no need to start), insert VAGCOM cable, and connect to your laptop. Start VCDS. Now, on VAGCOM, we’ll selected ‘53 - Parking Brake’ -> ‘Basic Settings - 04’ --> to the below screenshot:

https://lh6.googleusercontent.com/-ie0o8N1hCjQ/UxP0hLkYF0I/AAAAAAAAEJc/bNdvS7Tn05c/w719-h479-no/IMG_1995.JPG

Select ‘Start lining change mode’ and click ‘Go’. After you hear the whirring of the parking brake stop, exit/shutdown, and turn off the car. You may now start taking the rear wheel off.

After taking the wheel off, you will see this (this is the rear right wheel):

https://lh5.googleusercontent.com/-WeDAXXtU3Sw/UxP0rmGBujI/AAAAAAAAEMM/pbmSChnT4rg/w719-h479-no/IMG_2026.JPG

The rear right wheel also has a pad wear sensor:

https://lh3.googleusercontent.com/-Qa4ty0gFV20/UxP0t8-SPmI/AAAAAAAAEMs/Q2SuPXjCnVg/w719-h479-no/IMG_2034.JPG

That would be the wire coming out of the middle of the caliper.

To remove, first, pop off the bleeder nipple cap to release wire. I would pull it out (carefully) as there is a small spring surrounding the sensor:

https://lh6.googleusercontent.com/-mhNmbRIh5nI/UxP0tLiw9aI/AAAAAAAAEMo/L_Pz6lYXmnw/w719-h479-no/IMG_2030.JPG

You can see the spring clip above. It’s tiny and you can probably lose it fairly easily. Set aside with the sensor wire for safe keeping!

Remove the sensor by squeezing on the female side (left) and pulling that part off.

https://lh4.googleusercontent.com/-Z1tBxWvNcuI/UxP0tfed-oI/AAAAAAAAEMk/LccgeUqnP40/w719-h479-no/IMG_2033.JPG

The next step would then be to pop off the brake line from it’s holder:

https://lh3.googleusercontent.com/-WAAvXYOyamY/UxP0sqMXfTI/AAAAAAAAEMU/2w7vopyho7k/w319-h479-no/IMG_2028.JPG

This will give you some slack to handle the floating caliper.

To remove the caliper, you will need the 15mm and 13mm wrenches:

https://lh5.googleusercontent.com/-vgQ3RwirmOM/UxP0rqhhgaI/AAAAAAAAEMQ/7ClRmMqsv_c/w719-h479-no/IMG_2027.JPG

The 15mm wrench (closer to you) is basically to hold the bolts and prevent them from moving. The rear/furthest away from you) is the one you want to take out.

Slide the caliper off and use your brake piston tool to compress the piston:

https://lh3.googleusercontent.com/-L7YZj9QXNoA/UxP02Y1UNAI/AAAAAAAAEPI/k8U_1RKyiq8/w719-h479-no/IMG_2065.JPG

While holding the caliper with one hand, take the rear pads off (pop them off away from the brake rotor to remove the pad’s backing plate tabs from the retainer) and replace with new pads. I then coat a bit of nickel anti seize onto the two bolts and screw them in.

For the rear pad sensors, you now have two choices. If you 1) want the sensor in place and 2) bought brake pads that has the notch for them, you can now put the clip around the sensor lead and pop it back in.

though, if you’re like me, and the answer to the two questions above are ‘No’, then bust out your soldering kit… :slight_smile:

I cut the wires long to try and tuck it with the caliper bleed nipple cover. From them, I trim one of the wires shorter (so the longer one will ‘fold’ at the wire and not on the solder. I then strip the jacket using wire strippers and I twist them together:
https://lh5.googleusercontent.com/-67sUJknBWYc/UxP0xz7QblI/AAAAAAAAEOA/TdT80Hj56hk/w719-h479-no/IMG_2047.JPG

With a soldering iron, I solder the wires together:

https://lh3.googleusercontent.com/-kFzTpmo4JiY/UxP0yfYEgPI/AAAAAAAAEOI/VQZhbBpkdLM/w719-h479-no/IMG_2048.JPG

After that, I wrap the soldered joint with some electrical tape, and slide over some heat shrink and shrink it with a heat gun/hair dryer.

https://lh6.googleusercontent.com/-nVpR8HhsEPI/UxP0y4EtRwI/AAAAAAAAEOU/kbpAhl9aBbg/w719-h479-no/IMG_2051.JPG

Or if you wanted to, you can also cut the wires as short as you can and solder them together:

https://lh3.googleusercontent.com/-2bfuYU0d_tA/UxP0zN7Z2EI/AAAAAAAAEOY/CiO1yHBruGE/w719-h479-no/IMG_2053.JPG

Up to you…

Here’s the harness before:

https://lh6.googleusercontent.com/-G2iZoGzuCBg/UxP00awH3ZI/AAAAAAAAEOo/2lPofO2a1PE/w719-h479-no/IMG_2055.JPG

And after:

https://lh5.googleusercontent.com/-RpykQlc-3Lg/UxP00Rse2LI/AAAAAAAAEOs/L5xB5L-f4b8/w719-h479-no/IMG_2056.JPG

Plug the pad sensor in:

https://lh4.googleusercontent.com/-NpM5F3ldo7I/UxP028KP3aI/AAAAAAAAEPQ/Tam7ixVlGLU/w719-h479-no/IMG_2066.JPG

And make sure to slide the brake line back into it’s holder (I still forget this from time to time):

https://lh3.googleusercontent.com/-1ibVgb6CLkY/UxP03SYA9fI/AAAAAAAAEPc/WrW9wPGh2t0/w319-h479-no/IMG_2067.JPG

Putting wheels back on
Straight forward, just the reverse.

  1. Double check your work (triple check even) to make sure you didn’t forget anything.
  2. Slide wheel back onto the Wheel Lug guide
  3. Firmly seat the wheel onto the hub (being mindful that the lug holes are lined up and that the wheel is flush with the hub)
  4. Insert the lug bolt opposite from the wheel lug guide. Lightly tighten in a star pattern (opposites). If done right, your last lug bolt will be the position that the wheel lug guide is so take the lug guide out and replace with lug bolt.
  5. Slowly let the car down. Check surrounding first. Move jack away from the car and make sure the handle is in a safe direction (aka not pointing at cars, windows, loved ones, crotch/es).
  6. Tighten lug bolts with torque wrench going in a star pattern (torque set to 90 ft lbs)
  7. Retorque in a star pattern, all of the wheels.
  8. Fire up vagcom, go to Basic settings of Parking brake and choose ‘End lining change mode’. You’ll hear the EPB whirr some more, stop, and whir a short bit.
  9. Turn on car, press brake pedal firmly a few times to reseat, cycle through EPB once or twice, and let the car idle for a bit to let the vacuum build up on the brake assist (at least I think we have it lol).

Hope this helps!

Don’t forget to bed in the brake pads too.

http://www.stoptech.com/technical-support/technical-white-papers/bed-in-theory-definitions-and-procedures/stock-brake-system-bed-in
