JHM rs4 stage 1 supercharger kit

B6/7 S4/RS4
#1

finally my jhm stage 1 kit is here!, its taken a little longer than expected due to some differences between l/h/d and r/h/d.
me and a mate are going to be fitting this kit in the next couple of weeks, i cant wait!.

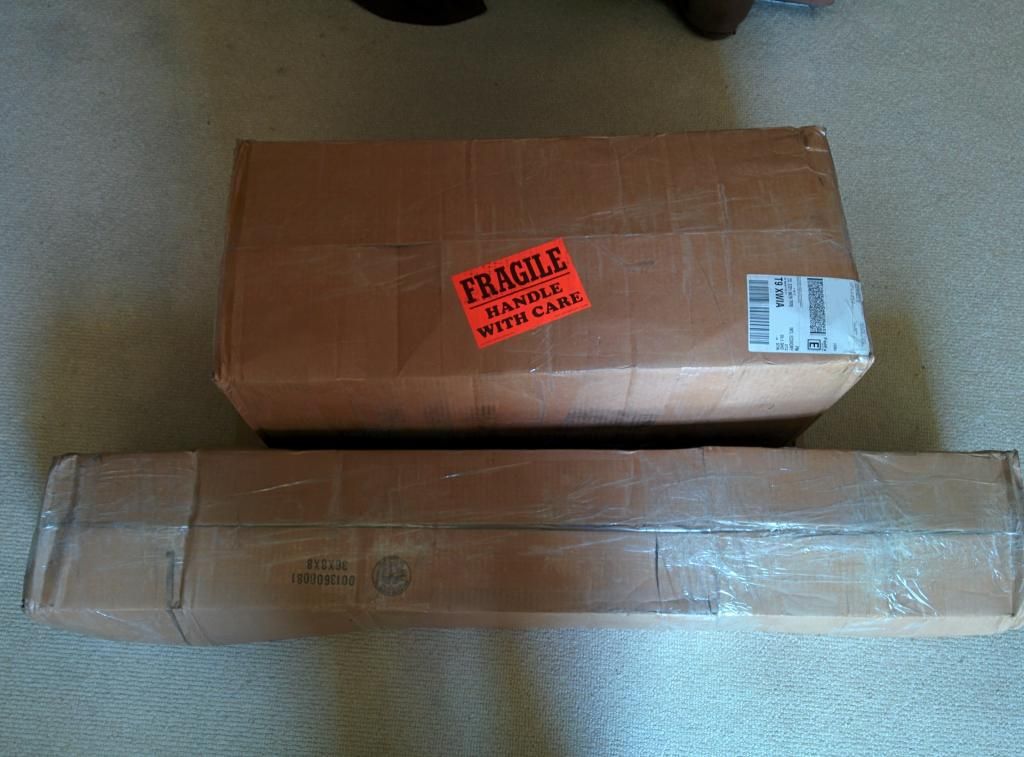

a few pics…

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140625_125339_zps41f2a656.jpg

the modified ac lines

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140706_161953_zps47a50d78.jpg

the kit

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140706_180548_zpsa94a6c8b.jpg

vortech v3

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140625_132057_zps5b85c9dc.jpg

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140625_132111_zps39b44c0e.jpg

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140701_142612_zps75183057.jpg

ill update this thread with some installation pics once we get started.

#2

Please do, If you have any questions make sure to let us know. Looks great you should be very happy. This is slowly becoming the Audi supercharger site. There are lots of supercharger install guys on here that can help. Myself included.

#3

SCRHDFTMFW! I’m excited for you, you’re going to love it!

#4

Congrats, sar!! Looking forward to further updates.

#5

Congrats man, excited to see your progress and take on the install!

#6

Welcome to the rs4 jhm sc family!

#7

Congrats…

#8

hahaha it’s so frigging big. Looks like a turbo from a city bus.

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140701_142612_zps75183057.jpg

#9

Nice man.

I really like the tensioner that they have on the SC. It is a nice improvement.

#10

Welcome to the JHM SC kit family!

#11

Congrats man, I need one of these. :stuck_out_tongue:

#12

go Canada go

http://i1367.photobucket.com/albums/r794/sarrs4/IMG_20140625_132111_zps39b44c0e.jpg

#13

haha…

i was pleasantly surprised when i seen the new tensioner set up, i had only seen the old set up in pics on the net.

#14

Awesome! Welcome to SC heaven!!! The JHMotorsports kit is killer!!!

#15

Subscribed!

Can’t wait to follow along!

#16

finally made some time to get this install started, not sure how long it will take as me and a friend are doing all the work as and when we get time. having said that we have made decent progress so far!.

got to find room in here for a supercharger!.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_163603_zpsf559917f.jpg

got to find a home for all this!

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_163618_zpsf36c256c.jpg

new oil and filter, fuel filter, new spark plugs, new one way valve for the vacuum system.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_164234_zps15d692aa.jpg

#17

bonnet off to make a bit of room.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/2_zpsa7f8437a.jpg

bumper off and crash bar removed, time to drain fluids.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_181128_zps974e98bf.jpg

everything drained and electrical connections unplugged, coolant, a/c, and oil lines disconnected. front panel removed.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_191034_zps718bd8c9.jpg

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_191239_zps56728a98.jpg

#18

next job was to remove the inlet manifold to fit some intake spacers and fit a new check valve (part of the supercharger kit) between the manifold and oil separator.

intake manifold removed, stock air box stripped out.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140730_210819_zps22caebeb.jpg

i wasnt desperate to do carbon clean it was only done 13,000 miles ago and the build up wasnt to bad, but i thought it was rude not while everything was stripped.
i filled a couple of ports with carb cleaner let it soak for 30 min then wicked it out with cloth and set about it with the wooden picks. i did this twice for each port.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140731_175102_zps04e0cdd6.jpg

i bought a pack of wooden potery tools and ground down a couple to make them a more useful shape. i also experimented with some cable ties/red scotch combo in a drill.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140801_115648_zpsb20335be.jpg

i imagine cable tie scotch combo would work better for removing the bulk of heavy build up but as i only had a light ish coating these were not that effective for me, i ended up cutting some small strips of scotch and dragged and scrubbed them round the ports manually with the wooden picks while they were still full of carb cleaner.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140731_201720_zpsab7f5481.jpg

#19

with the carbon clean done its time to fit the inlet spacers and get the manifold back on.

inlet spacers

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140802_145158_zpse80ef03a.jpg

i forgot that when you fit the inlet spacers you have to lift the fuel lines that run over the top of the manifold up about 10mm to allow for the extra height.
so we quickly re installed it and used a pry bar to lift the fuel lines the required amount.

fuel lines tweaked and manifold back off, spacers can go in.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140802_151540_zps58a1a109.jpg

manifold back on, new plugs fitted and coil packs back on.

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140802_165307_zps18fe4909.jpg

http://i1367.photobucket.com/albums/r794/sarrs4/jhm%20supercharger/IMG_20140805_124424_zpsc127a9bd.jpg

#20

Strong work, sir! I was browsing your thread on RS246 and thought you’d forgotten about us jk lol. Are you the first JHM kit in the UK? How did the exchange rate work out for you?
